Description

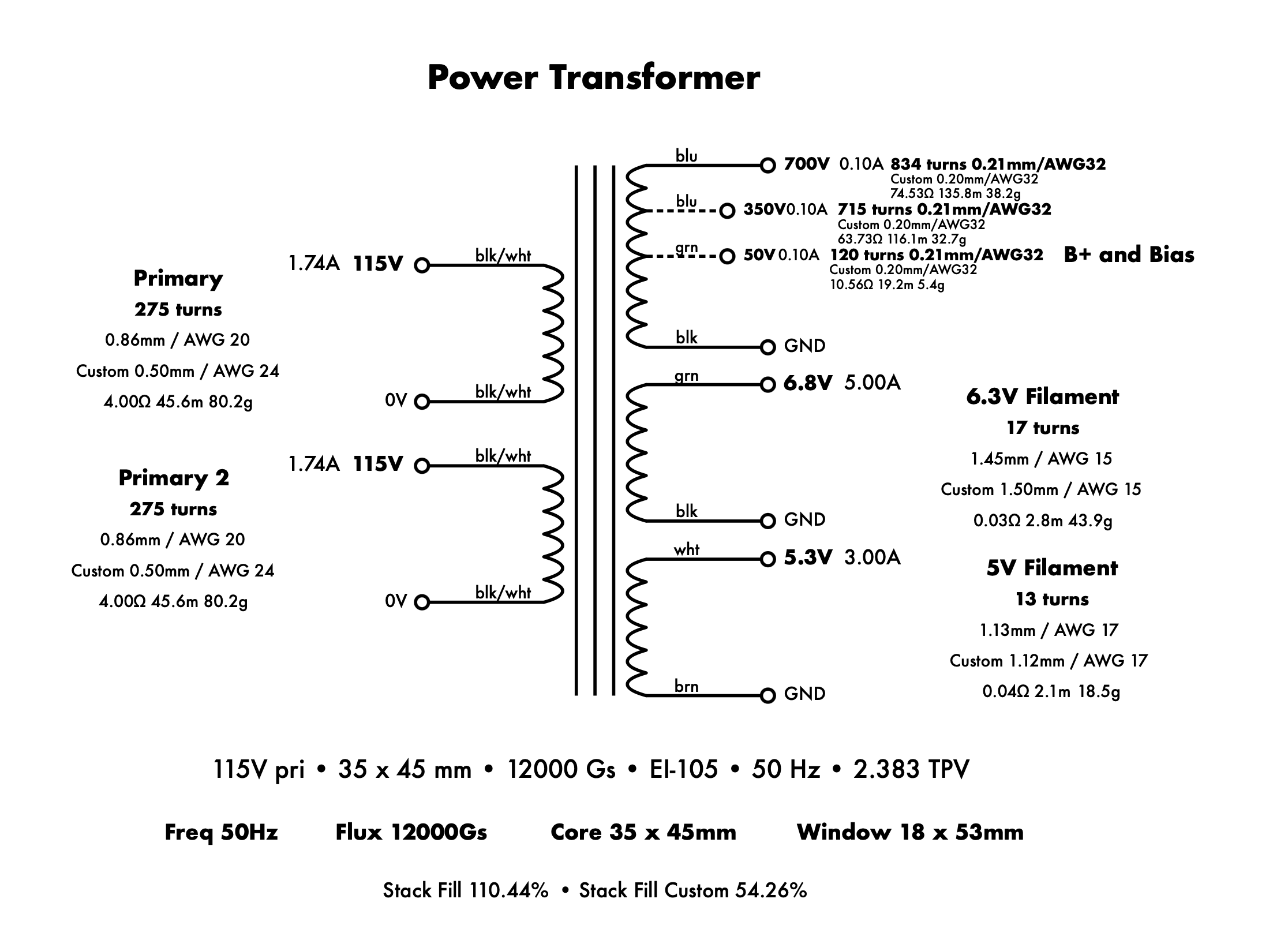

This was the ultimate dream of mine – to have a transformer calculator that is a real transformer diagram and everything is intuitive and in few clicks as you add windings and calculate your transformer you have a beautiful ready to print diagram with all the data you need and you can Save and Export the PNG picuture.
All three calculators are included as in Pro with the tried and true Wizard calculator that now show the suggestions for both metric and imperial lamination sizes for core and bobbin sizes.
